Our Engineering Services & Solutions
Delivering High-Strength, Regulated Structural Infrastructure for Nigeria’s Utility and Electrification Networks.
Established in 2017, SSK Integrated Services Limited combines cutting-edge technical expertise with rigid quality management systems to provide turnkey electrical infrastructure and civil engineering services. We build quality into our raw materials, casting methodologies, and rigorous validation tests to consistently exceed industry and regulatory requirements.
Our Services
Need Any
Consultation?

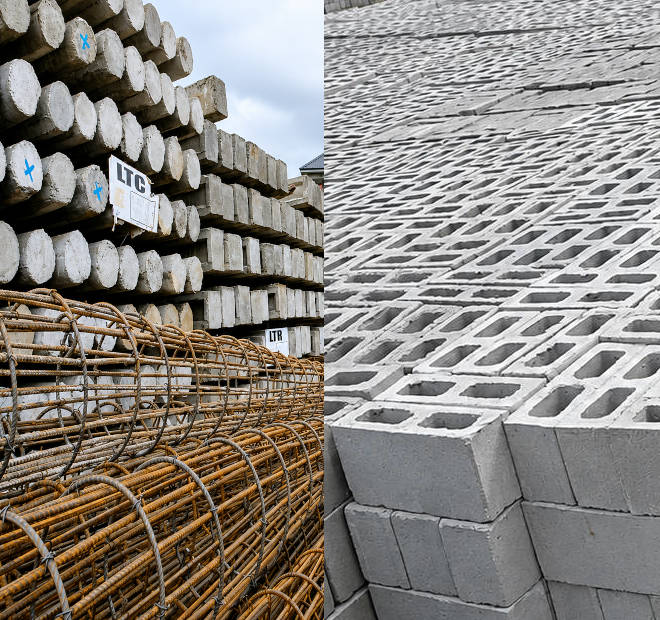

Manufacturing & Sales of Reinforced Precast Concrete Poles
- SERVICE OVERVIEW:
High-volume precision manufacturing of structurally unyielding reinforced concrete poles engineered for low-voltage (LV) and high-voltage (HV) cross-country power distribution grids.
- THE TECHNICAL EDGE:
Grade C35 Concrete: All poles are cast exclusively using premium Grade C35 concrete with a strict 50mm reinforcement cover to prevent moisture ingress and erosion.
- Advanced Rebar Core:
– Structured with robust 16-H8 and 51-H6 steel reinforcement cages to guarantee ultimate bending moment thresholds.
– Accelerating Admixtures: We utilize special chemical admixtures to facilitate early strength development and completely eliminate internal voids or defects.
- High-Volume Curing:
Our facility houses heavy-duty wet curing ponds capable of fully immersing at least 160 concrete poles per batch for a complete 28-day hydration cycle.
- STANDARD DIMENSIONS MATRIX:
– 8.53m Poles: Designed for internal estate and low-voltage distribution lines.
– 10.40m & 12.20m Poles: Engineered for 11KV and 33KV cross-country transmission distribution.
- 13.70m Heavy-Duty Poles: Maximum-clearance poles providing an ultimate load tolerance of up to 1200kg.
- Custom Layouts: We offer diverse geometric steel molds to cast custom shapes fitting unique client and blueprint specifications.
Who We Are
SSK INTERGRATED SERVICES LIMITED
Experience to be trusted
WORK HISTORY - Proven Track Record
A showcase of a few of our high-voltage and low-voltage concrete pole supply contracts
2021
Project Title: SS+GS–CEIP Ogbotobo Transmission Node Project
Contractor: PIMO
Deployment: 50 Units of 10.40m Heavy-Duty Concrete Poles
Timeline: Completed – August 2021
Engineering Milestone: Premium structural density verified with a compressive cube strength of 44.44 N/mm² at 28 days.
2021
Project Title: SS+GS–CEIP Tunu Node Transmission Project
Contractor: Westfield
Deployment: 173 Units of 10.40m Heavy-Duty Concrete Poles
Timeline: Completed – December 2021
Engineering Milestone: Achieved an exceptional compressive cube strength of 46.52 N/mm² at the full 28-day curing cycle.
2024
Project Title: CEIP – Otumara Section Two (Ugborodo Community Network)
Contractor: Tadoro Nigeria
Deployment: 5 Units of 12.20m Transmission Poles & 83 Units of 10.40m Heavy-Duty Poles
Timeline: Completed – August 2024
Engineering Milestone: Structural integrity verified with a load strength of 43.22 N/mm² at 28 days.
2024
Project Title: CEIP – Escravos Infrastructure Project (Phase I)
Contractor: Realhatt Venture
Deployment: 4 Units of 12.20m Transmission Poles & 227 Units of 10.40m Heavy-Duty Poles
Timeline: Completed – July 2024
Engineering Milestone: Confirmed structural performance with a strength metric of 41.48 N/mm² at 28 days.
2024
Project Title: CEIP – Escravos Infrastructure Project (Phase II)
Contractor: Tarimore
Deployment: 4 Units of 12.20m Transmission Poles & 498 Units of 10.40m Heavy-Duty Poles
Timeline: Completed – July 2024
Engineering Milestone: Unyielding structural validation recording 43.22 N/mm² compressive strength at 28 days.
2025
Project Title: SS+GS–CEIP Iduwini Cluster Town Network
Contractor: S2 Generation Services
Deployment: 55 Units of 8.53m Low-Voltage Distribution Poles
Timeline: Completed – January 2025
Engineering Milestone: High mechanical durability achieved with a cube strength of 44.44 N/mm² at 28 days.
2025
Project Title: SS+GS–CEIP Ogbotobo Transmission Node Project (Expansion I)
Contractor: PIMOMAFUTA
Deployment: 350 Units of 10.40m Heavy-Duty Concrete Poles
Timeline: Completed – August 2025
Engineering Milestone: Defection-resistant build quality hitting 43.22 N/mm² at 28 days.
2025
Project Title: SS+GS–CEIP Ogbotobo Transmission Node Project (Expansion II)
Contractor: MOPROJECT
Deployment: 1,000 Units of 10.40m Heavy-Duty Concrete Poles
Timeline: Completed – December 2025
Engineering Milestone: Large-scale fabrication consistency verified at 43.22 N/mm² compressive strength at 28 days.
What we stand for
Through these ways, we aim to be not just a service provider, but a partner in our clients' success.
01
Providing Comprehensive Solution
Providing comprehensive and tailored constructions services, including logistics, supply chain maintenance, equipment supplies.
02
Cultivate
Cultivate a culture of continuous learning and innovation, empowering our employees to consistently to improve and adapt to industry trends and challenges.
03
Responsibility
Conducting our business with the highest standards of integrity, ethics, and corporate governance, while promoting diversity, inclusion and social responsibility.
04
Contributing
Contributing positively to the society in which we operate, through community engagement, ethical business practice, and sustainable development initiative
